Magnaflux Y-7- AC/DC Yoke Kit

Magnaflux Y-7 - AC/DC Yoke Kit

The Y-7 is a durable, high-strength AC/DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the Y-7 is ideal for inspection of welds and other remote testing.

Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs.

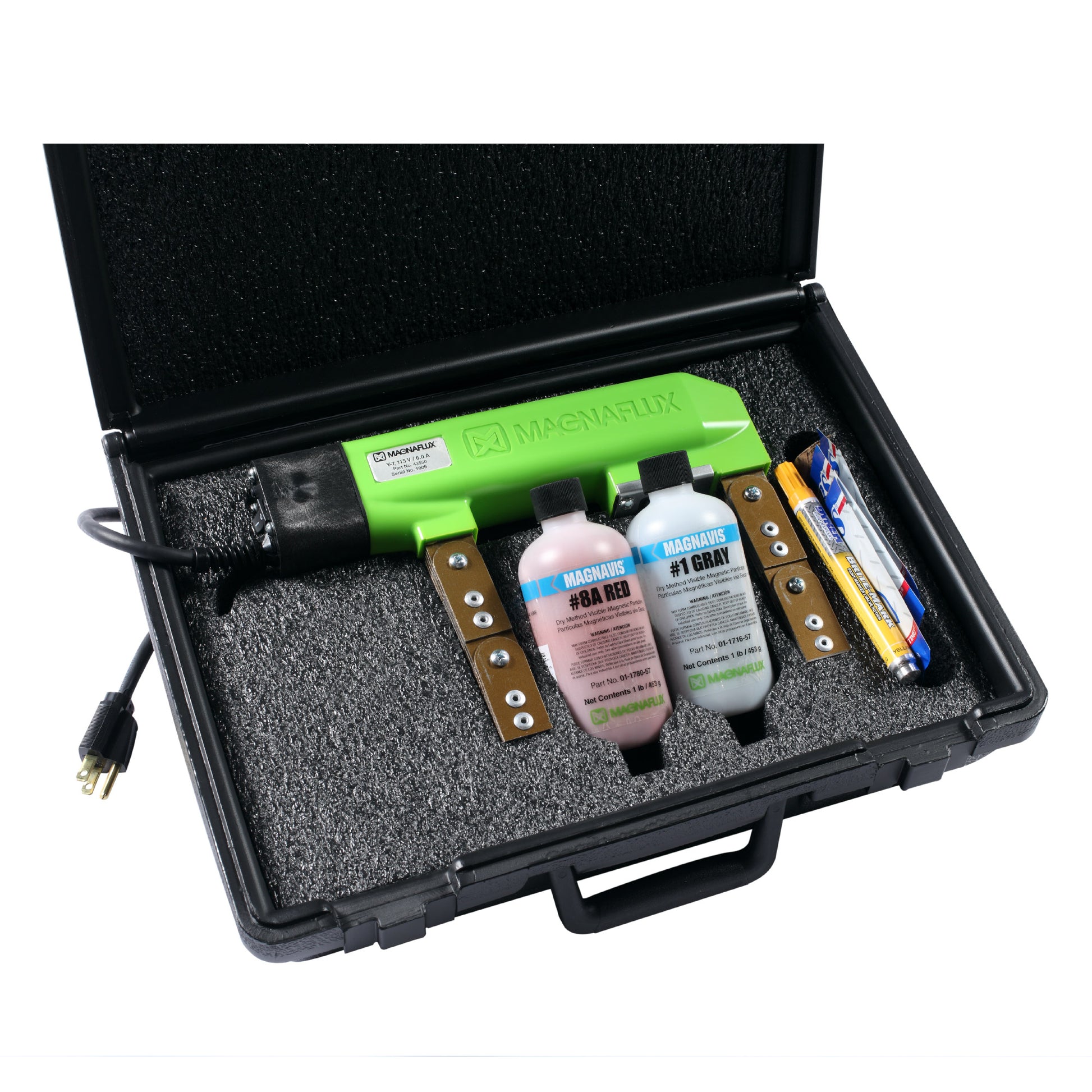

The Y-7 is also available in the Y-7 MV Kit which comes with a Y-7 yoke, #1 Gray and #8A Red magnetic powders, a paint marker and hand cleaner towels in a convenient carrying case.

Benefits & Features

• Sealed, durable construction
• Chemical and abrasion resistant
• AC and DC operation options for surface and sub-surface inspection
• Exceeds ASTM lifting specifications
• Individual serial number for each yoke

Specifications

• ASME BPVC
• ASTM E709
• ASTM E1444
• ASTM E3024

Applications

Defect location: Surface and subsurface

Ideal for:

• Field testing
• Spot inspections
• In-service inspections
• Demanding environments
• Weld inspection

Defect examples:

• Inclusions
• Seams
• Shrink cracks
• Tears
• Laps
• Welding slag
• Grinding cracks
• Quenching cracks
• Fatigue cracks

Recommended Accessories:

• Yoke Test Weight    PN 624115
• Yoke Light               PN 623745
