Ultrasonic Couplant Powder
UT-X® Powder is a cost-effective couplant powder for flaw detection and thickness gaging applications where ferrous corrosion inhibition is required.
UT-X Powder retains viscosity on salt caked boiler tubes, corroded pipe, structural steel, steel billets, welds and ship plate. Mixed with water at the inspection site, its compact and lightweight packets are easy to transport to a job site or to store as an emergency couplant for unanticipated shortages.
Benefits
- Salt resistant
- Environmentally benign formula
- Fast, lump-free mixing
- Concentrated to reduce shipping cost and storage space
- No dyes, fragrance or glycerin
- Low skin irritation potential
- Short-term corrosion protection
- Economical option
Specifications
Applications
Defect location: subsurface
Ideal for:
- Flaw detection
- Thickness gauging
- Power generating boilers
- Corroded parts
- When corrosion, salt, or salt cake is present
- Large volume flaw inspections
- Structural steel
- Steel billets
- Welds
- Ship plates
Use Recommendations
NDT Method: Ultrasonic Testing
Required Equipment: UT equipment, transducer
Temperature Range: 32 to 120°F / 0 to 49°C
Compatibility: Most composites and metals

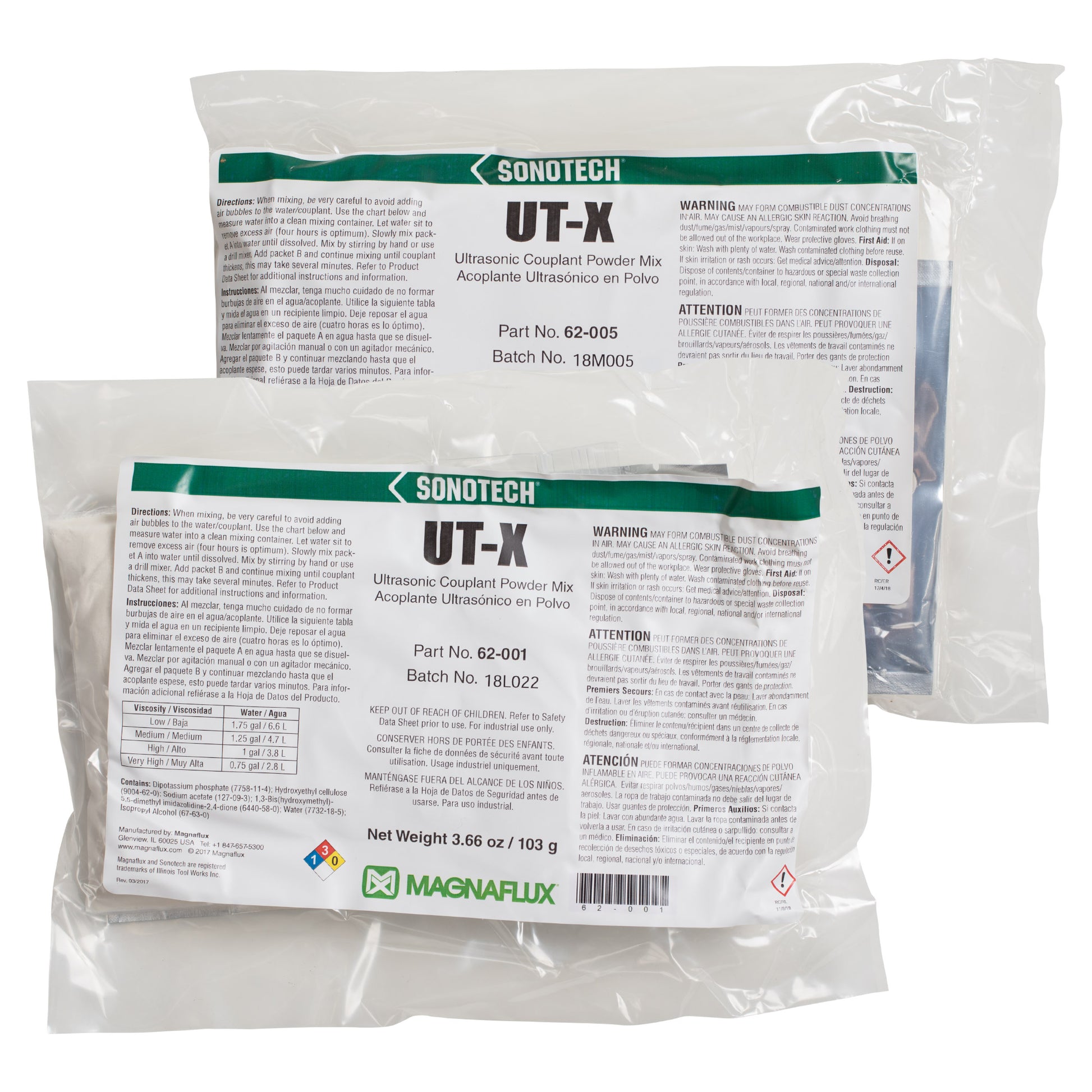

Container Size & Part Number

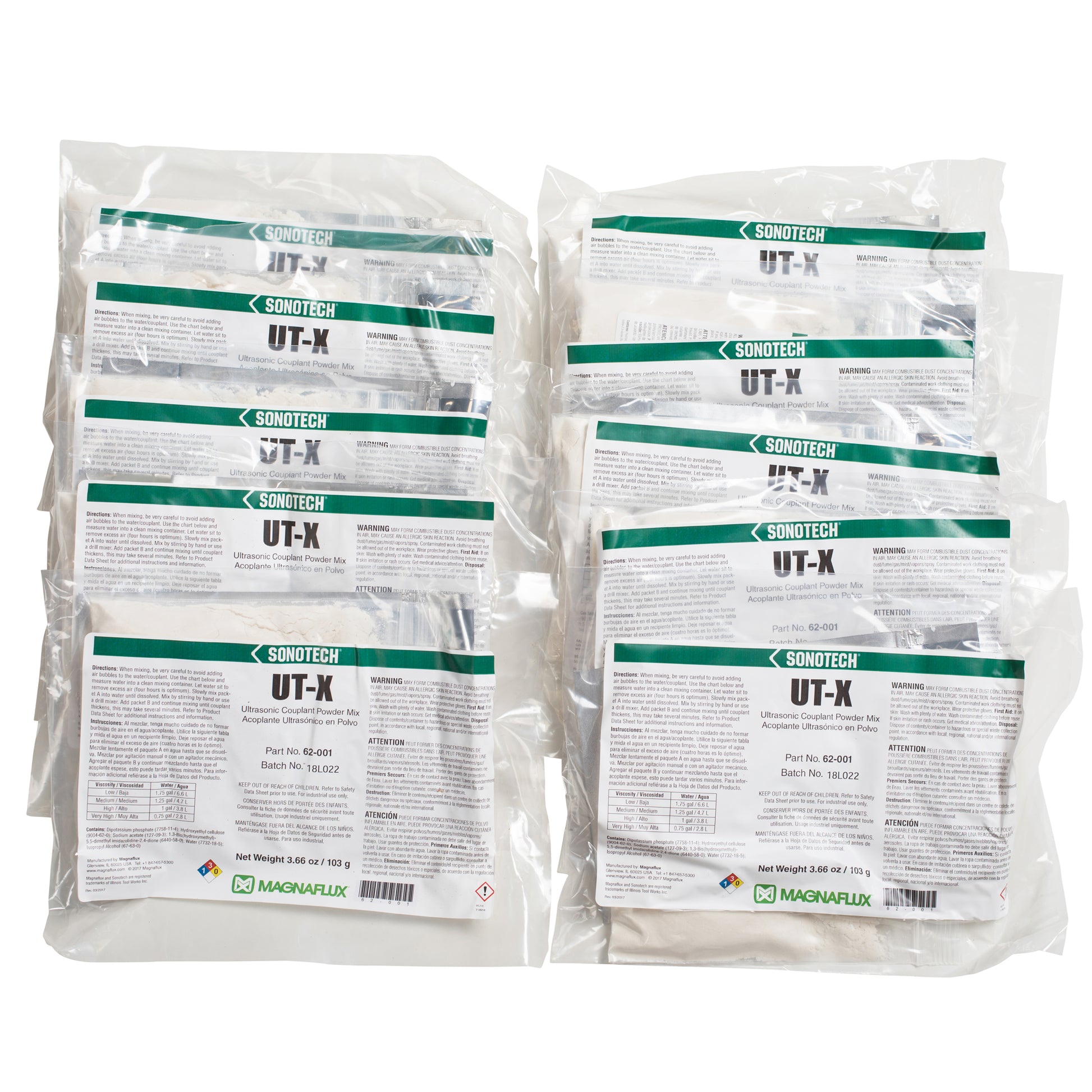

1 gal / 3.78 L packet (case of 10) 62-110
5 gal / 18.9 L packet (case of 10) 62-510

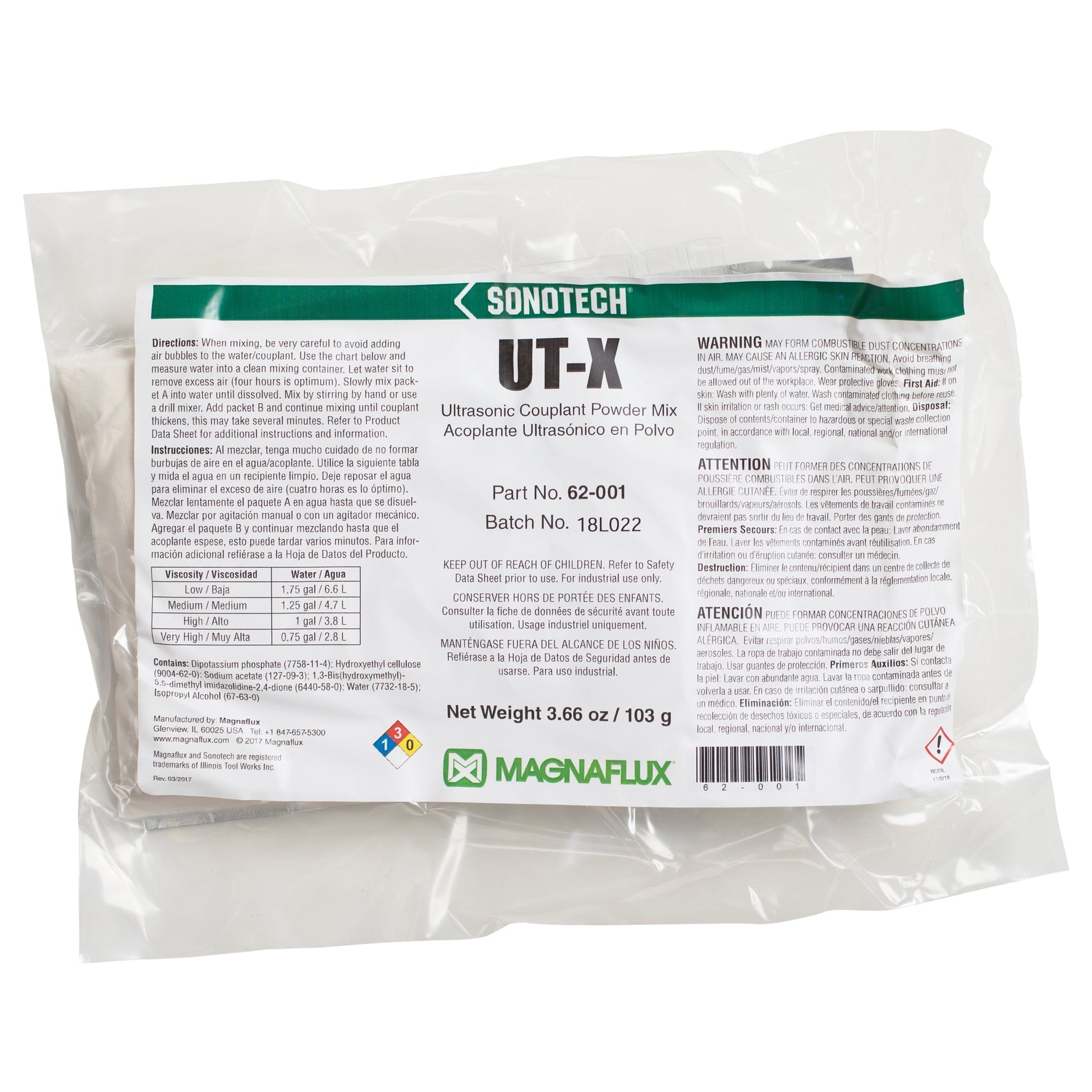

1 gal / 3.78 L packet 62-001

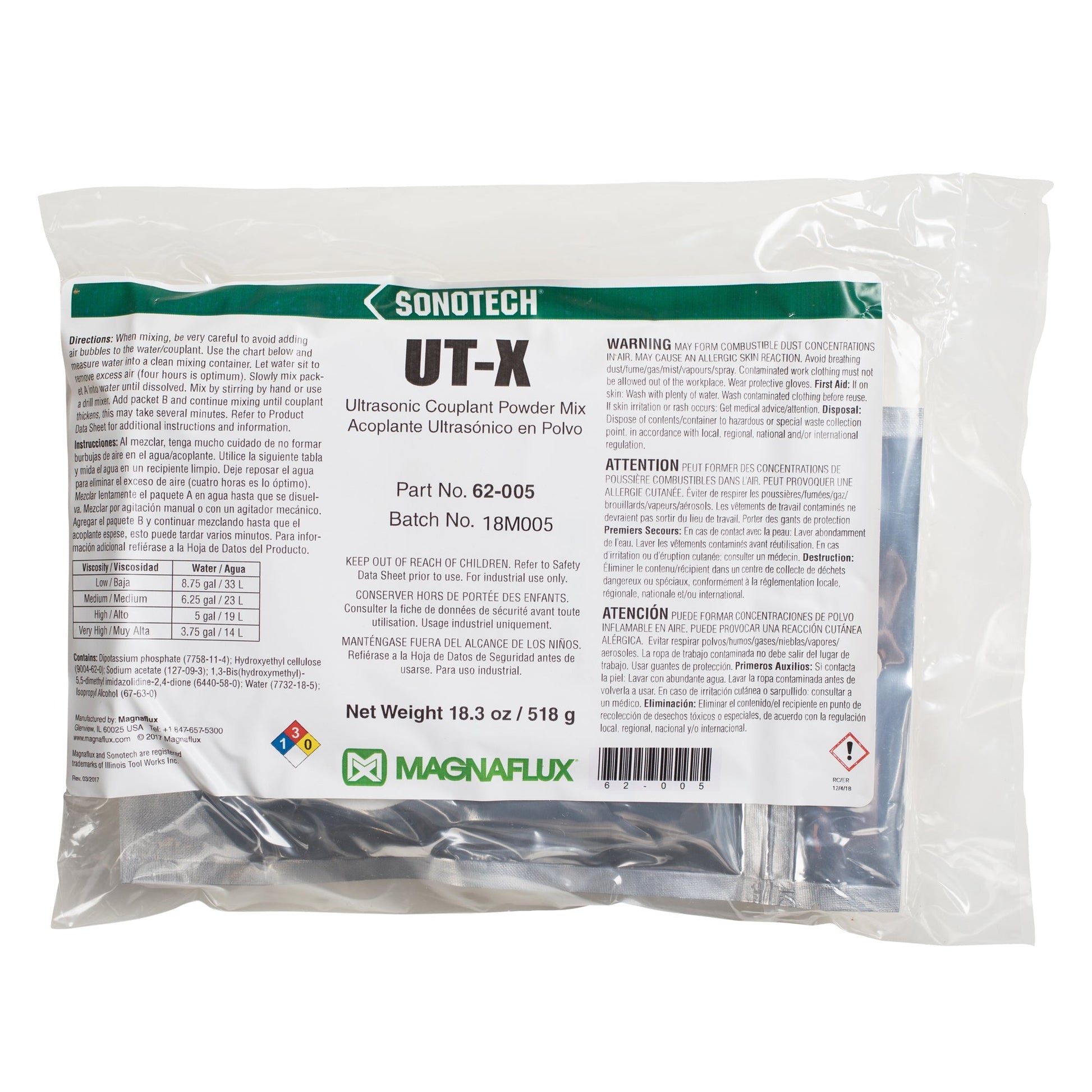

5 gal / 18.9 L packet 62-005
